- Description
-
Description

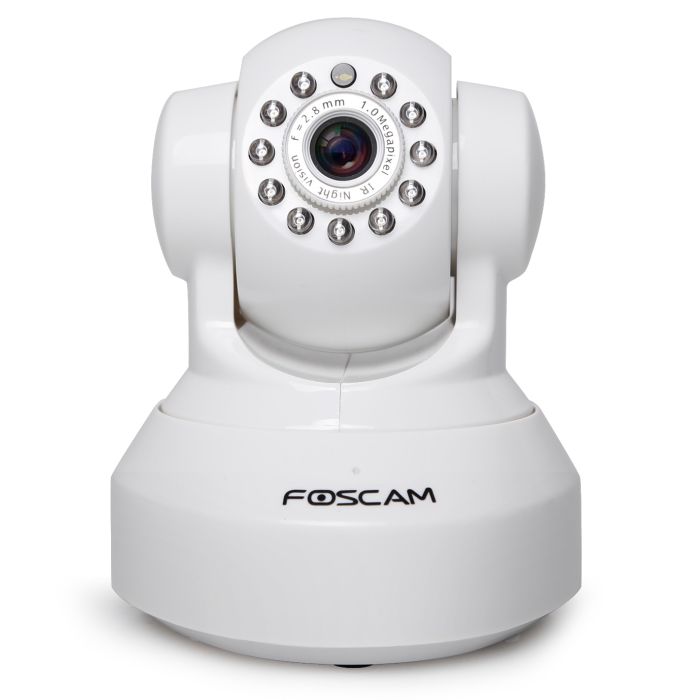

The FI9816P is Foscam's latest and most affordable HD IP Camera EVER!
As well as a fantastic price for a 1 Megapixel Plug and Play IP Camera, the FI9816P boasts the new EZLink technology by Foscam which provides the end user a simple three step setup in just one minute!
The user interface and video quality may be seen in the image below, click to enlarge.
✔ 1.0 MegaPixel High Definition
✔ Plug & Play
✔ EZLink Technology
✔ Display Resolution 1280 x 720
✔ Video Recording On Motion Detection
✔ WPS-enabled Wireless Connection
✔ Night Surveillance Up To 8 Meters
✔ Embedded IR-Cut Improves Image Clarity
✔ Wide Viewing Angle - 70 Degrees
✔ Pan & Tilt - 300° Horizontal, 120° Vertical
✔ Free Embedded Foscam DDNS Server
✔ Compatible With iOS (iPhone/iPad) & Android
✔ Supports Wireless b/g/n
✔ Micro SD Card Slot (Up to 32GB) *Not Supplied
✔ H.264 Video Compression
- Technical Features
-
Technical Features
Image/Lens
Sensor Type1/4" CMOSDisplay Resolution1280 x 720 (1 Megapixel)Frame Rate25fps (VGA), 23fps (720P)IR-CutBuilt In IR-CutMinimum Illumination0 Lux (With IR Illuminator)Lens Typef:2.8mm, F2.4Diagonal Angle of View75° (Max)Horizontal View Angle70°Pan/Tilt AngleHorizontal 300°, Vertical 120°Infrared ModeAutomatic or ManualNight Vision8 Metres
Conectivity
EthernetYes, RJ45 ConnectionWirelessIEEE 802.11b/g/nWireless SecurityWEP, WPA, WPA2>Plug n Play TechnologyYesMicro-SD Card SlotSupports up to 32GB (Not Supplied)
Software Features
Video FormatH.264Multi-StreamDual StreamsMotion DetectionYesE-mail/FTP AlarmYesScheduled RecordingYesUPnPYesBuilt-In DDNS ServerYesSupported BrowsersWindows: IE6 and above, Firefox, Chrome. Mac: SafariOS SupportedAndroid, iOSFirewallSupports IP FilteringUser AccountsThree levels of user roles
Audio
Two-Way Audio SupportYesMicrophoneBuilt-In and External InputSpeakerBuilt-In and External Input
Physical and Environmental
Dimesions (mm)110(L) x 103(W) x 127(H)Net Weight310gPower Adapter5V/2APower Consumption7.5 Watts (Max.)Operating Temperature-10°C ~ 50°COperating Humidity20% ~ 80% non-condensingResetVia ButtonWarrantyLimited 2-Year Warranty - Downloads
-
Downloads
User Manuals
FI9816P Quick Installation GuideFI9816P User ManualFoscam Super Client User Manual
Software
Foscam Super-Client Software v1.4.14
Firmware
FI9816P Latest Firmware Downloadv2.x.2.33 (Released: 14-04-2016
- Additional Info
-
Additional Information
Resolution 720p Connectivity Wireless, Ethernet Movement Pan/tilt Viewing Angle Wide Sensor Type No Video Resolution No Backlight Compensation No Frame Rate (Max) No Lens Type No View Angle No Infrared Mode No Infrared Range No Pan & Tilt Angle No Wireless Standard No Wireless Security No Data Rate (Max) No Network Protocol No Ethernet No USB No WPS No P2P No SD Card Slot No Video Format No Video Format No Motion Detection No Day / Night mode No Scheduled Recording No Built-in DDNS Server No OS Support No 2-way Audio No Built-in Microphone No Built-in Speaker No External Microphone Input No External Speaker Output No Waterproof No Net Weight (grams) No Battery Capacity No Standby No Length (mm) No Width (mm) No Height (mm) No Certification No Warranty No Operating Temperature No Operating Humidity No Storage Temperature No Storage Humidity No Power Supply No Other Features No - Reviews
